Introduction
This Small Vertical Rotary Cartoning Machine is specially designed for production environments with limited space and high requirements for packaging accuracy.
Its core advantages include:
• Compact design: It adopts a disc-type rotating structure, occupying a very small area and is highly suitable for small and medium-sized laboratories or start-up workshops.
• Flexible and efficient: It adopts vertical manual or automatic feeding, with products loaded from the top. It is particularly suitable for medicine bottles, essences, cosmetics and irregular-shaped parts.
• Easy operation: Equipped with a PLC touch control system, specification switching is fast (usually within 15-20 minutes), and it supports sealing boxes with sockets or hot melt adhesive.
• High compatibility: It can be combined with filling machines and labeling machines to form a small-scale automated production line.
For enterprises pursuing a high return on investment (ROI), it is an ideal choice for the transformation from manual packaging to automation.
Key Features
- It is specially design to pack small quantities multi size box.
- With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.
- 304 stainless steel case
- Advanced PLC Control System Combined with Colorful Touch Screen Control Panel , can easily set and change the packing parameters.
Applications
Ideal for pharmaceutical, food, cosmetics, and auto parts industries. Capable of packing blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes, and various other products into cartons.
Technical Parameters
| Model |
WZTS-50 |
| Packing speed |
5-25Cartons/min |
| Carton size range |
H(60-195)mm*L(25-80)mm*W(25-80)mm
Spray-glued paper box:H(60-195)mm*L(25-50)mm*W(25-50)mm
|
| Carton gram requirements |
250-350g/m3 |
| Motor power |
0.3-0.5KW |
| Power supply |
Single phase 220V 50Hz |
| Machine noise |
≤80dB |
| Air pressure |
0.7-0.8 Mpa |
| Dimension |
1100*1550*1900 mm |
| Weight |
550Kg |

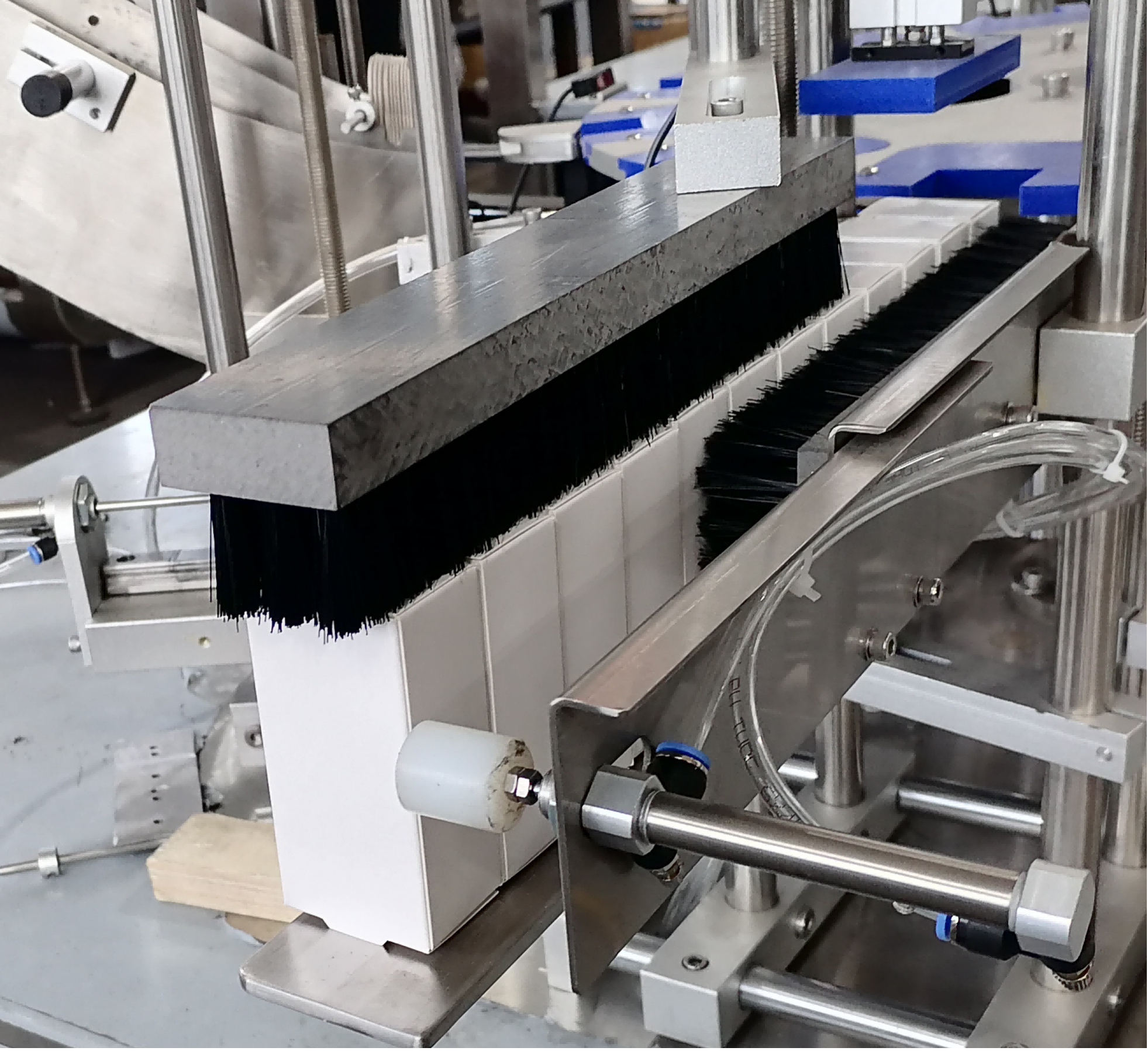

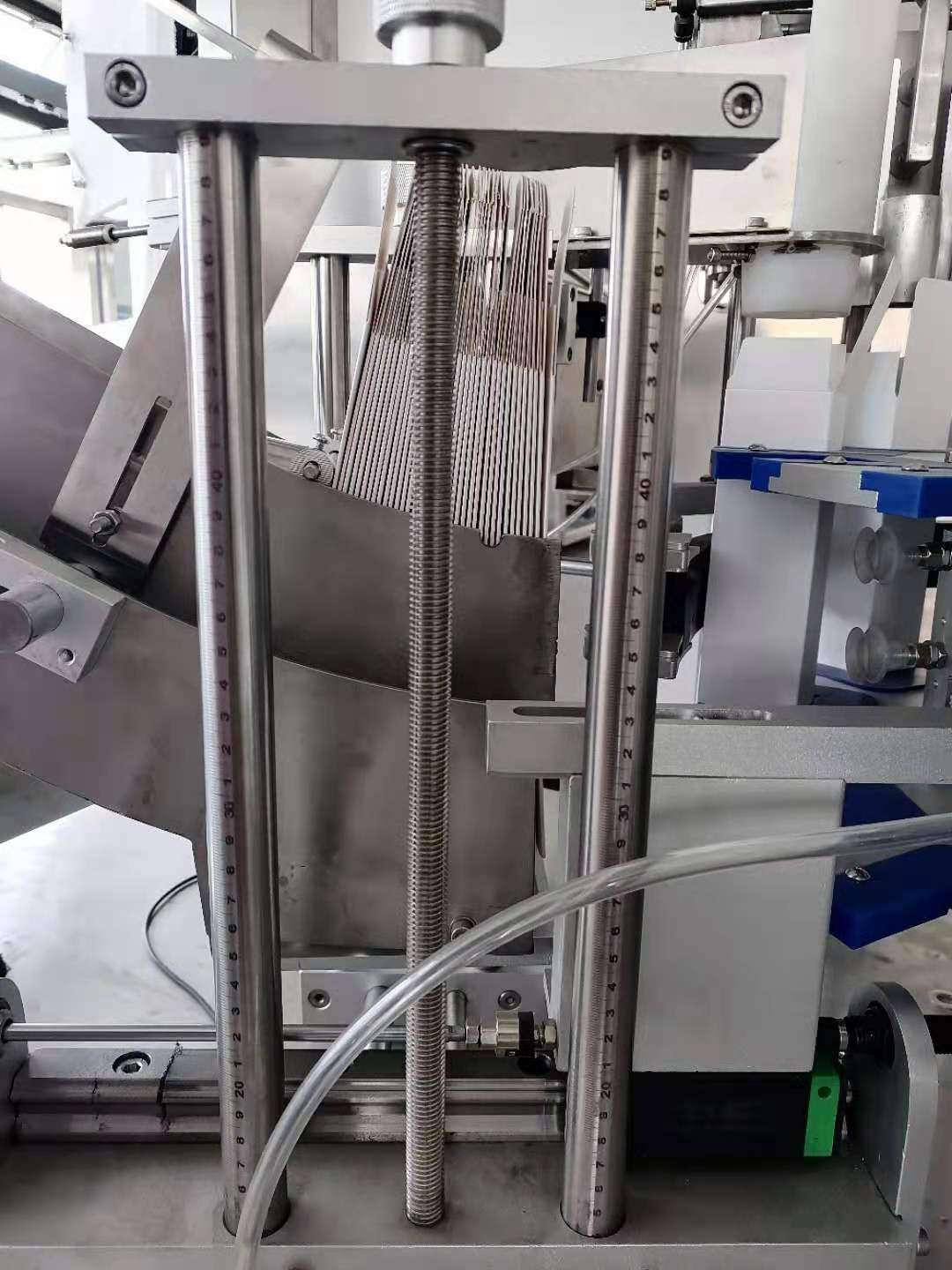

Detailed Photos
Company profile
Certificate
FAQ:
What's the delivery time?
Approximately 30 working days
How many containers are required for this machine?
Suggested shipment by LCL (Less than Container Load)
Are you a manufacturer?
Yes, we have specialized in packaging machinery manufacturing for over 17 years
What are your payment terms?
Standard terms: 40% T/T in advance, balance paid before shipping
Our Advantages
- 17 years of specialized machinery manufacturing experience
- Global customer base with international shipping experience
- CE certified equipment meeting international standards
- Responsive customer service team
- Comprehensive after-sales support and spare parts service
